Hot Dip Galvanized Steel Solar Mounting System

Steel ground solar mounting system is a reliable and cost-effective solution for installing solar panels on the ground. It consists of sturdy steel structures that securely support the solar panels while withstanding extreme weather such as wind and snow. The piles are varied, allowing for customized installation on various types of terrain. With excellent durability and structural stability, steel ground mounting systems are widely used in both commercial and utility-scale solar projects.

Material:

Q235 or Q355

Foundation Type:

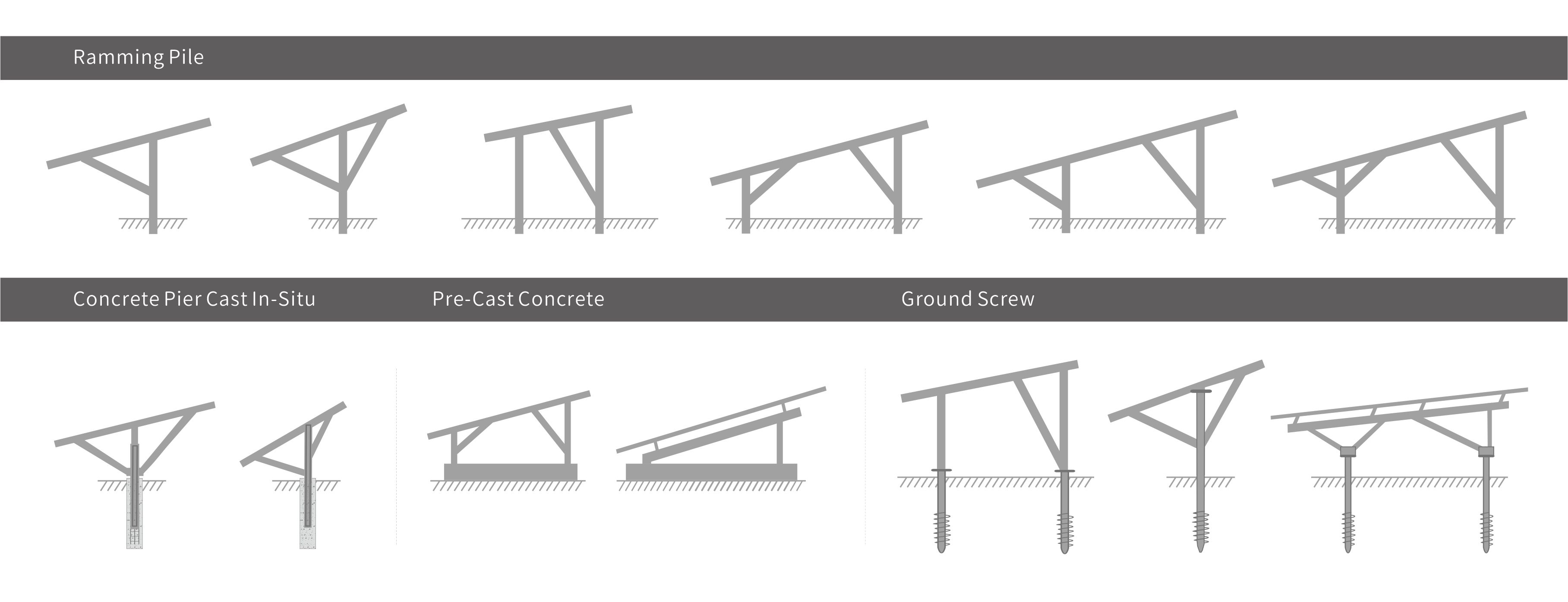

Deiven Pile，Ground Screw or Concrete

Wind Load:

≤ 60 m/s，Per Local codes

Snow Load:

2.4KN/M²，Per Local codes

Module Type:

Compatible with all modules

Service life:

≥ 30 Years

Warranty:

15 Years

Galvanized Thickness:

70μm-100μm，Per Local codes

The Pole Ground Solar Mounting System, featuring a Basic Span Single Ramming Pile Type design, is a largely pre-assembled ground mounting solution. It is aptly suited for the deployment of large commercial and utility-scale solar photovoltaic projects. Fabricated from superior-grade aluminum, this solar mounting system boasts impressive resistance to corrosion. Its patented single-pile structural design not only reduces installation time and expense, with good compatibility to varied solar modules.

Adjust Ground Solar Panel Structure

The Adjust Ground Solar Panel Structure is designed for increasing power generation by angle settings according to season changing. It can achieve different angle cover N-S 10'-60 through manual or with electric motor. Carbon steel is adopted as the main material for structure to ensure the whole stability.

C-Profile Zn-Al-Mg Coated Steel Solar Mounting System

The main steel structure of Huge Energy's C-Profile Zn-Al-Mg coated steel solar mounting system is made of high-quality Zn-Al-Mg coated steel material. This ensures not only structural stability and aesthetic appeal but also provides exceptional self-repair capabilities and excellent corrosion resistance, resulting in a long service life. The solar mounting system utilizes an innovatively designed portable clamp that eliminates the need for flange holes on the upper and lower wings of the rail, enhancing the structure's bending resistance. It allows for flexible installation based on the size of the modules, significantly reducing installation time.

Aluminum Solar Ground Mounting System

Aluminum solar ground mounting system is crafted from aesthetic, sturdy, and lightweight aluminum alloy materials. The corrosion-resistant properties ensure lasting durability, while the modular design enables simple installation and customization to suit different terrains and project needs.

Waterproof Solar Carport

Apply to commercial and residential, dual-use for parking and power, double income.

Tilted photovoltaic bracket system

HUGE inclined photovoltaic bracket system is suitable for flat terrain and various uneven slopes, with strong wind and snow resistance. System stability, large-span design, minimal installation components, and low cost. Adjustable angles from east, west, north, and south, suitable for various inclined terrain. By using a pile driver to drive the foundation into the ground, construction is simple and installation efficiency is high.

Tile Roof Solar Mounting System

Roof hooks are applied to many different tiles such as pantile, Roman tile, slate, clay tile, etc. Adjustable hooks can be adjusted horizontally and vertically.

Metal Roof Solar Mounting System

The Metal Roof Solar brackets are suitable for roofing with corrugated sheet metal, or trapezoidal metal sheet. A Hanger bolt is available for the foot option, making the installation more convenient, competitive, and reliable. The systems fully comply with the Australian and other international standards on wind & snow load, making it suitable for a wide variety of climatic zones.
