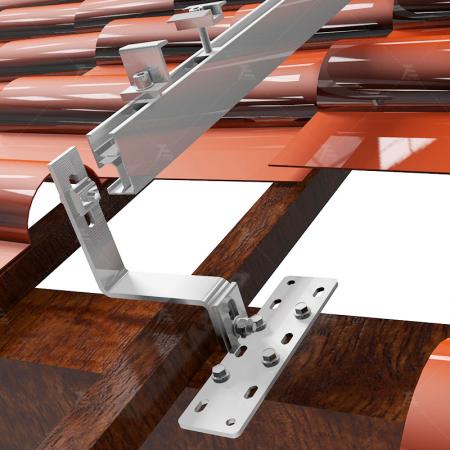

Tile Roof Solar Mounting System

Roof hooks are applied to many different tiles such as pantile, Roman tile, slate, clay tile, etc. Adjustable hooks can be adjusted horizontally and vertically.

  • Material:

    SUS 304 Stainless Steel
  • Wind Load:

    Up to 60 m/s
  • Snow Load:

    2.4KN/㎡
  • Service life:

    25 Years
  • Warranty:

    15 Years
  • Roof Slope:

    Up to 45°
Inquiry now
Product Detail


Tile Roof Solar Mounting System
Roof hooks are applied to many different tiles such as pantile, Roman tile, slate, clay tile, etc. Adjustable hooks can be adjusted horizontally and vertically.

Tilt Angle:0°~ 45°

Wind Speed:60 m/s

Snow Load:2.4 kn/m^2

PV Module:Framed / Frameless

Module OrientationLandscape / Portrait

Main Material:AL6005-T5 (Anodized), A2-70 (SUS304)

Color: Silver / Black
Warranty: 15 Years




Feature
  • Simple and Fast Installation
  • No Drilling nor Welding on Rooftop


Tile Roof Mount Series









24-W01
24-W02
24-W03-A
24-W03-B
24-W04
24-W05-A
24-W05-B







24-W06-B
24-W07
24-W08-B
24-W09
24-W10
24-W11
24-W12







24-W13A
24-W13B
HE-24-W03
HE-24-W05
HE-24-W06
HE-24-W08
HE-24-W13
